制造业界的F4－ Fluoro, Fast, Friendly, Favorable
PTFE内衬管路规格一览表
PTFE Lined Pipe & Fittings List
PTFE内衬蝶阀
德国GARLOCK进口PTFE蝶阀，常备尺寸150lbs2"、3"、4"、6"、8"、12"，其他尺寸需进口时间约45天
规格除ANSI150lbs,另有DIN PN10/16
压力范围：真空~150psi(10bar)双向气密
温度范围：(-40°C~ +200°C)

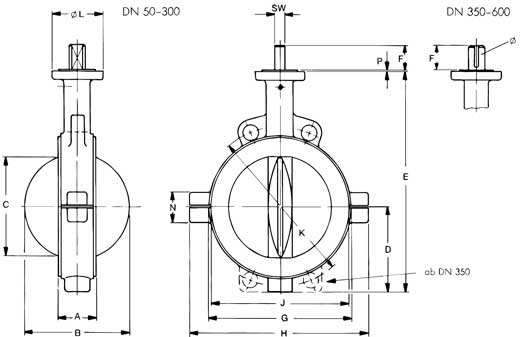

DN |
Adapter |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
SW |
P |
N |
Z |
Weight kg |
|||
DIN |
ANSI 150LB |
DIN |
ANSI |
|||||||||||||||||
Inch |
mm |
|||||||||||||||||||
2 |
50 |
F 05 |
43 |
60 |
43 |
62 |
202 |
35 |
102 |
152 |
98 |
125 |
121 |
65 |
100 |
3 |
40 |
4xM16 |
4x 5/8“-11 |
260 |
2 1/2 |
65 |
F 05 |
46 |
70 |
53 |
70 |
220 |
35 |
121 |
171 |
120 |
145 |
140 |
65 |
100 |
3 |
40 |
4xM16 |
4x 5/8“-11 |
360 |
3 |
80 |
F 05 |
46 |
82 |
67 |
79 |
244 |
35 |
133 |
183 |
127 |
160 |
152 |
65 |
100 |
3 |
40 |
8xM16 |
4x 5/8“-11 |
400 |
4 |
100 |
F 07 |
52 |
106 |
93 |
95 |
275 |
35 |
162 |
214 |
159 |
180 |
190 |
90 |
130 |
3 |
50 |
8xM16 |
8x 5/8“-11 |
610 |
5 |
125 |
F 07 |
56 |
128 |
115 |
108 |
303 |
35 |
192 |
248 |
187 |
210 |
216 |
90 |
130 |
3 |
50 |
8xM16 |
8x 3/4“-10 |
860 |
6 |
150 |
F 10 |
56 |
157 |
147 |
121 |
336 |
40 |
218 |
290 |
216 |
240 |
241 |
125 |
170 |
3 |
56 |
8xM20 |
8x 3/4“-10 |
1,120 |
8 |
200 |
F 10 |
60 |
197 |
188 |
150 |
395 |
40 |
273 |
350 |
270 |
295 |
298 |
125 |
170 |
3 |
56 |
8xM20 |
8x 3/4“-10 |
1,640 |
10 |
250 |
F 12 |
68 |
246 |
236 |
179 |
459 |
50 |
328 |
405 |
324 |
350 |
362 |
150 |
220 |
3 |
60 |
12xM20 |
12x 7/8“- 9 |
2,720 |
12 |
300 |
F 12 |
78 |
295 |
284 |
216 |
536 |
50 |
378 |
455 |
375 |
400 |
432 |
150 |
220 |
3 |
70 |
12xM20 |
12x 7/8“- 9 |
3,610 |
14 |
350 |
F 14 |
92 |
335 |
322 |
265 |
640 |
60 |
438 |
550 |
413 |
460 |
476 |
175 |
444 |
4 |
70 |
16xM20 |
12x 1“- 8 |
7,150 |
16 |
400 |
F 14 |
102 |
387 |
374 |
305 |
725 |
60 |
489 |
570 |
470 |
515 |
540 |
175 |
444 |
4 |
70 |
16xM24 |
16x 1“- 8 |
8,920 |
18 |
450 |
F 16 |
114 |
430 |
415 |
320 |
780 |
80 |
539 |
670 |
533 |
565 |
578 |
210 |
444 |
4 |
70 |
20xM24 |
16x11/8“- 7 |
12,540 |
20 |
500 |
F 16 |
127 |
484 |
467 |
355 |
865 |
80 |
594 |
690 |
584 |
620 |
635 |
210 |
444 |
4 |
70 |
20xM24 |
20x11/8“- 7 |
15,730 |
24 |
600 |
F 25 |
154 |
578 |
558 |
415 |
990 |
90 |
695 |
820 |
692 |
725 |
749 |
300 |
635 |
5 |
76 |
20xM27 |
20x11/4“- 7 |
25,620 |
8 |
200 |
for PN 16 > DN 150 |
295 |
|
|
|
|
|
12xM20 |
|
|
|||||||||
10 |
250 |
355 |
|
|
|
|
|
12xM24 |
|
|
||||||||||
12 |
300 |
410 |
|
|
|
|
|
12xM24 |
|
|
||||||||||
